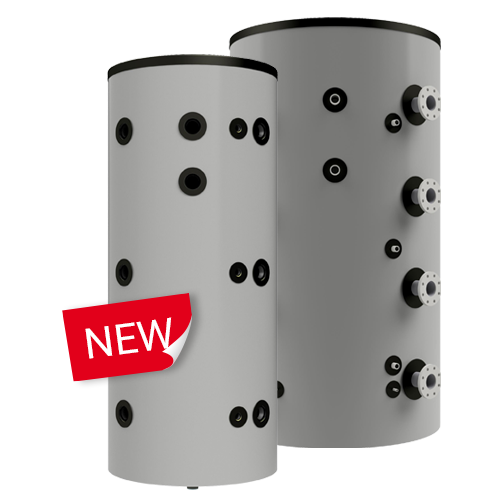

NAD v1

The NAD storage tanks are produced with the possibility of installing one to three flanges. For the installation of the TPK heating unit, you can use a flange with a bolt circle diameter of 210 mm. The placement and number of sleeves can be changed upon request. In the standard version, the flange is blind.

The storage tank is suitable as a buffer for heating systems with solid fuel boilers.

NAD 50, 100 and 250 tanks are supplied with polyurethane insulation and coated sheet-metal casing.

NAD 500, 750, 1000 tanks are supplied without insulation. Insulation is supplied upon request.

NAD v2

The NAD storage tanks are produced with the option to install G6/4" sleeves. A G6/4" sleeve can be used for the installation of the TJ 6/4" heating unit. The tanks can be made with more sleeves. The placement and number of sleeves can be changed upon request. In the standard version, the sleeve is blind.

The storage tank is suitable as a buffer for heating systems with solid fuel boilers.

Storage tanks are supplied without insulation. Insulation is supplied upon request.

Type NAD v2	500 v2	750 v2	1000 v2	1500 v2	2000 v2
Volume of heating water in the tank (l)	475	772	999	1507	2007
Diameter (mm)	600	750	850	1100	1100
Height (mm)	1970	2028	2040	1906	2436
Weight including insulation (kg)	87	114	129	192 without insulation	235 without insulation
Energy efficiency class

NAD v3

NAD v3 storage tanks are produced in two versions – with flange with a bolt circle diameter of 210 mm for the installation of the TPK heating unit (type 500-1000), or without a flange and with sleeves only (type 300). In the standard version, the flange is covered by the removable cover with screws. The sleeves can be used to install the TJ 6/4" heating unit.

The storage tank is suitable as a buffer for heating systems with solid fuel boilers.

Storage tanks are supplied without insulation. Insulation is supplied upon request.

Type NAD v3	300 v3	500 v3	750 v3	1000 v3
Volume of heating water in the tank (l)	320	475	772	999
Diameter (mm)	550	600	750	850
Height (mm)	1610	1970	2028	2040
Weight including insulation (kg)	70	98	123	141
Energy efficiency class

NAD v4

NAD v4 storage tanks are fitted with a flange with a bolt circle diameter of 210 mm for the installation of the TPK flange heating unit. In the standard version, the flange is blind. The tanks can be made with more flanges. The vessel includes a 1,5 m² exchanger for the connection of an additional heating system (e.g. SOLAR). The tubular heat exchanger cannot be used for hot water heating. The placement and number of sleeves can be changed upon request.

Storage tanks are suitable as storage tanks for heating systems with solid fuel boilers and solar systems.

Storage tanks are supplied without insulation. Insulation is supplied upon request.

Type NAD v4	500 v4	750 v4	1000 v4
Volume of heating water in the tank (l)	475	772	999
Diameter (mm)	600	750	850
Height (mm)	1970	2030	2040
Weight including insulation (kg)	121	148	164
Energy efficiency class

NADS v3

NADS v3 storage tanks are produced without a flange and with sleeves only. The sleeves can be used to install the TJ 6/4" heating unit.

The storage tank is suitable as a buffer for heating systems with solid fuel boilers.

Storage tanks are supplied without insulation. Insulation is supplied upon request.

Type NADS v3	800 v3
Volume of heating water in the tank (l)	775
Diameter (mm)	790
Height (mm)	1880
Weight including insulation (kg)	114
Energy efficiency class

UKV

Steel storage tanks can be used as ordinary heating water tanks, or they can be connected to a heat pump to ensure its smooth operation.

The sleeves can be used to install the TJ 6/4" heating unit.

Tanks are supplied including insulation

Type UKV	UKV 300	UKV 500
Volume of heating water in the tank (l)	316	470
Diameter (mm)	650	700
Height (mm)	1580	1937
Weight (kg)	79	103
Energy efficiency class (Polyuretan)
